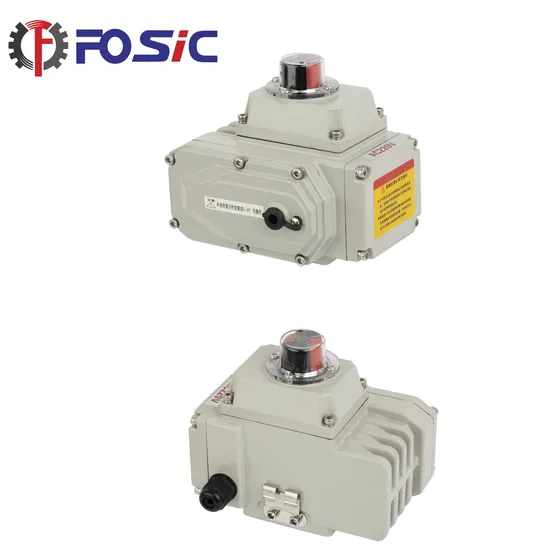

Electric Actuator

Basic Info

Model NO.	EA-0000194
Certification	ISO, CE
Power Supply	AC220V
Power Source	Electric Power
Temperature	Ordinary Temperature
Connection	Thread
Material	Alloy
Torque	20~2000nm
Protection Class	IP67
Type	on/off, Regulating
Control Signal	4~20mA
Transport Package	Carton/Wooden Box
Specification	CE, TUV, ISO
Trademark	Grat
Origin	Wuhan, Hubei, China
HS Code	8537109090
Production Capacity	1000PCS/Month

Product Description

Electric actuator
Product Description

1.Technical parameters

Type		20	50	100	200	400	600	1000	1500	2000
Characteristics
Output torque		20NM	50NM	100NM	200NM	400NM	600NM	1000NM	1500NM	2000NM
Action time(S)		10/20	4/10 20/60	4/7 15/30/60	6/15 30/60	6/15 30/60	45	15/30	48	60/75
Gyration angle		0-90° 0-360°	0-90° 0-360°	0-90° 0-360°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°
Motor power(W)	AC220V	6	10	25	40	90	90	120	140	140
	AC380V	-------	6	15	30	40	40	90	100	--------
	DC24V	8	13	25	35	70	70	---------	---------	----------
Rated current(A)	AC220V	0.16	0.16	0.32	0.35	0.54	0.64	0.96	0.98	1.03
	AC380V	---------	0.07	0.1	0.15	0.29	0.29	0.45	0.46	---------
	DC24V	0.7	1.28	2.03	3.57	5.13	3.04	---------	--------	--------
Weight(Kg)		1.2	2.5	3.5	8	8.5	9	17	18	20
Power		AC 220V±10% 50HZ/60HZ, AC 380V±10% 50HZ/60HZ, DC24V
Insulation resistance		100MΩ/500VDC
Anti-pressure level		1500VAC 1Min
Protection level		IP67(It is no leakage in water about 20 meters deep)
Limited component		Power-driven: Fully open and close, limit switch. Manual: Mechanical stopper.
Protector		Overheat protector(self-recovery)
Installation position		Any direction from 0 to 360 degree
Electrical connection		M20*1.5 Waterproof cable connection, power wire, signal wire
Ambient Temp.		-30ºC--60ºC

2.Installation Diagram

3.Control Diagram

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact signal

Packing&Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea,by air,by train.

Our Services
1.Professional consultation
2.24 hours response after sale.
3.One year warranty.
4.Safe packing for shipment.
5.Welcome sample order.
